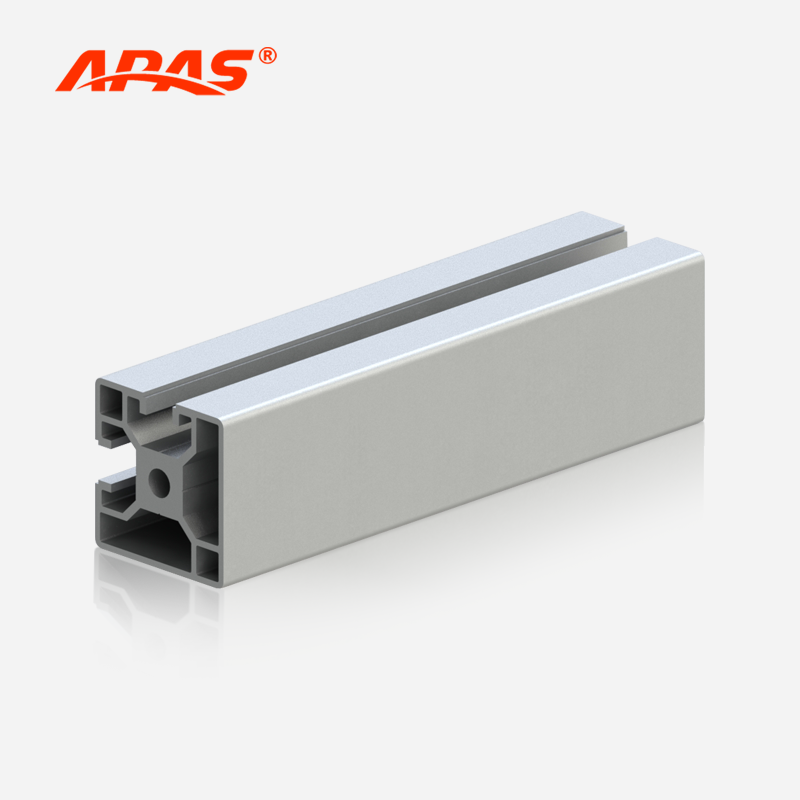

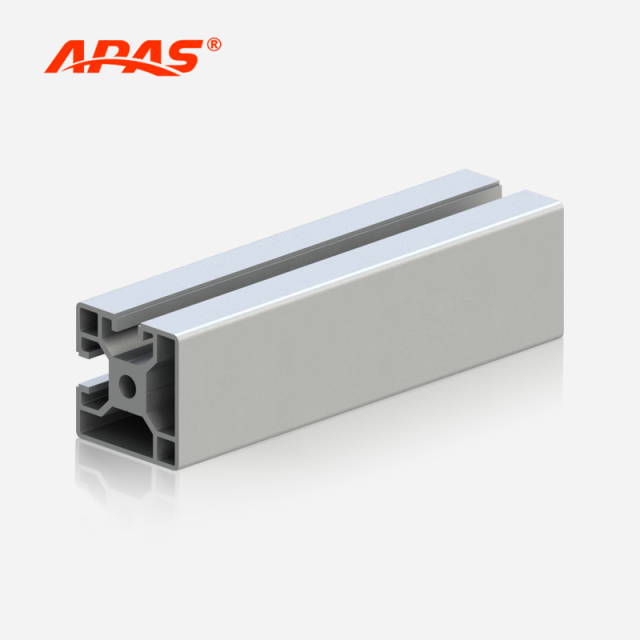

P8-4040-2N90 Aluminum Profile

No.P8-4040-2N90
The P8-4040-2N90 aluminum profile measures 40mm × 40mm, with T-slots of 8.2mm. This profile features slots on 2 sides for assembly with other profiles or necessaries, while other 2 sides are smooth surface, offering an aesthetically pleasing and easy-to-clean finish.
The P8-4040-2N90, along with the 1N and 2N180, are developed for constructing frames requiring high airtightness and designed for different sections of the frame: the 1N and 2N180 are suitable for intermediate sections, while the 2N90 is suitable for edge sections of the frame structures.
Profile No.
P8-4040-2N90
Material
6063-T5 Aluminum
Dimensions
40mm*40mm
T-slot Size
8.2mm
Color
Plain
Max Length
6 m per piece
Manufacturing Process
Extrusion
GET A QUOTE

  • Description

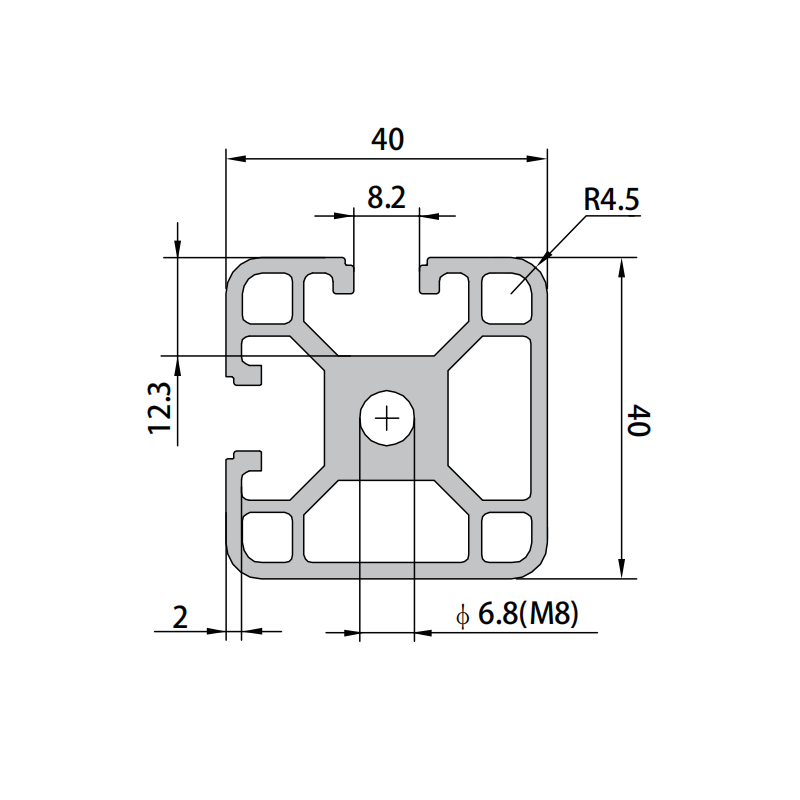

  • Section Diagram

Profile No. P8-4040-2N90
Material 6063-T5 Aluminum
Dimensions 40mm*40mm
T-slot Size 8.2mm
Color Plain
Weight per Meter 2.17 kg/m
Moment of Inertia Ix 11.79 cm⁴
Moment of Inertia Iy 11.79 cm⁴
Section Modulus Wx 5.95 cm³
Section Modulus Wy 5.97 cm³
Max Length 6 m per piece
Manufacturing Process Extrusion
Surface Treatment Process Sandblasting, Anodizing
