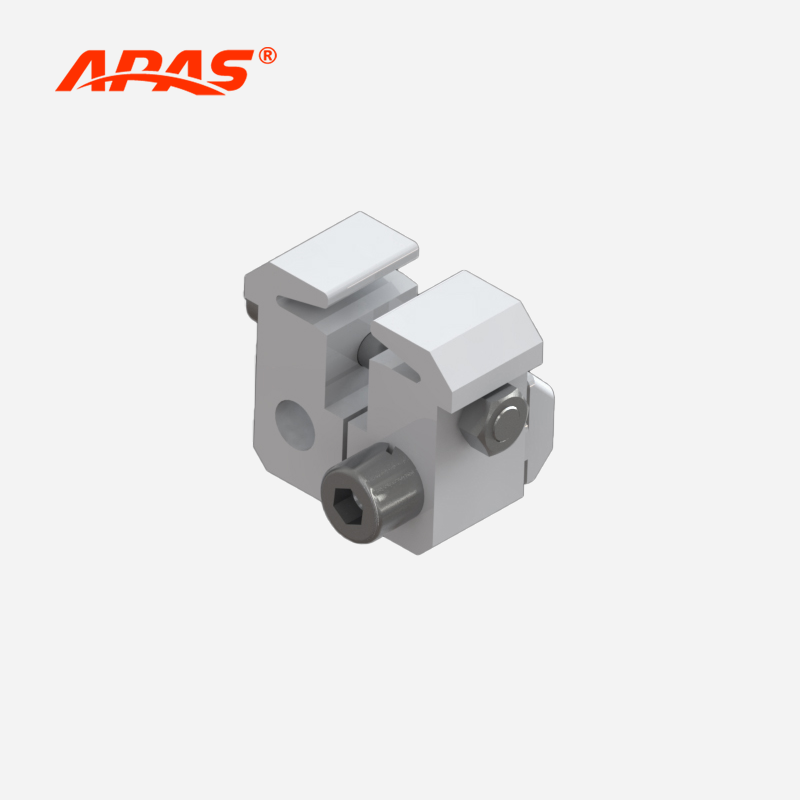

Clamp Block

No.CE.TB40.CB

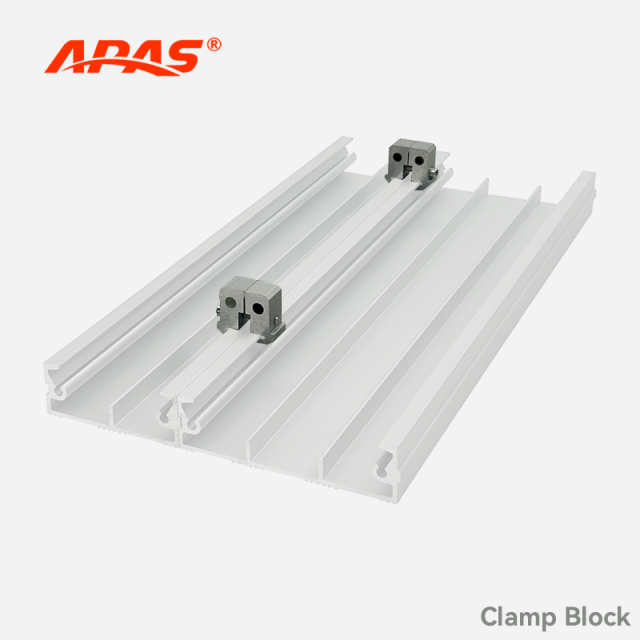

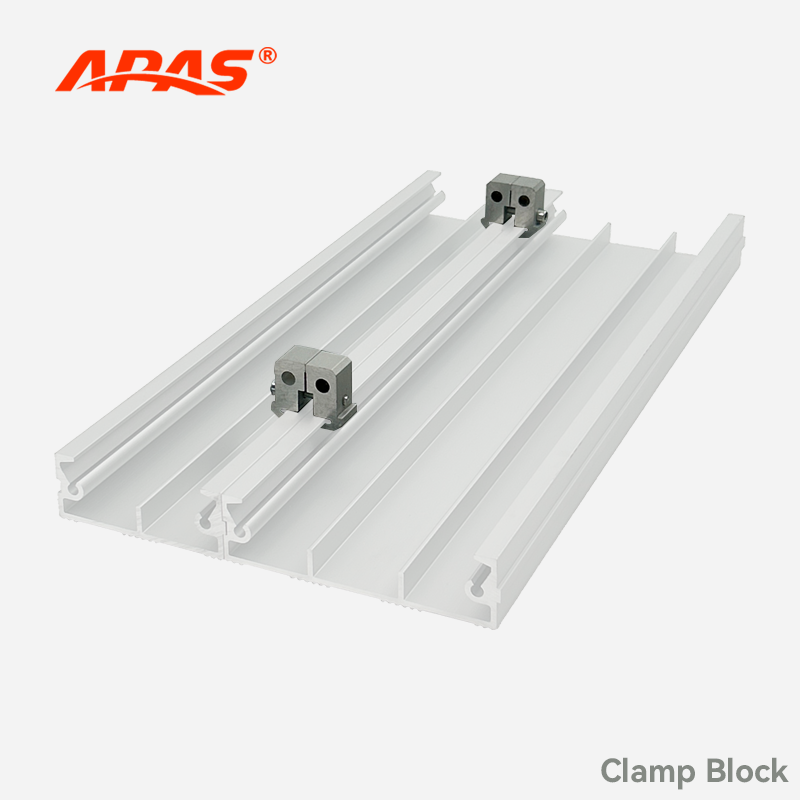

  • Used for connecting and fastening two side-by-side profiles to form a tread

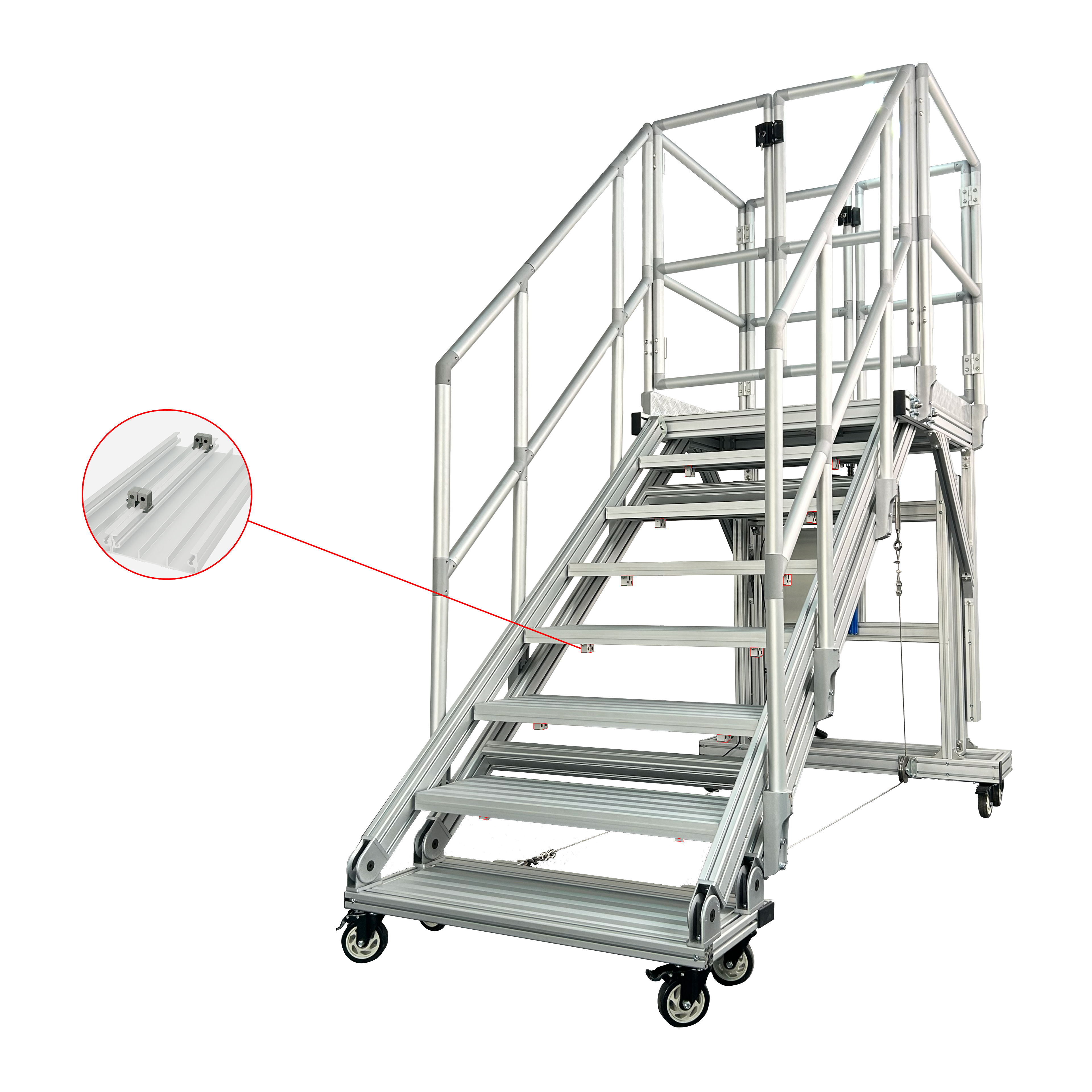

  • Designed for stairway platform system
  • Connected and secured by screws and bolts
No.
CE.TB40.CB
Material
Aluminum Alloy
Weight
125 g
Applicable Profile
100mm Step Profile/150mm Step Profile
  • Description

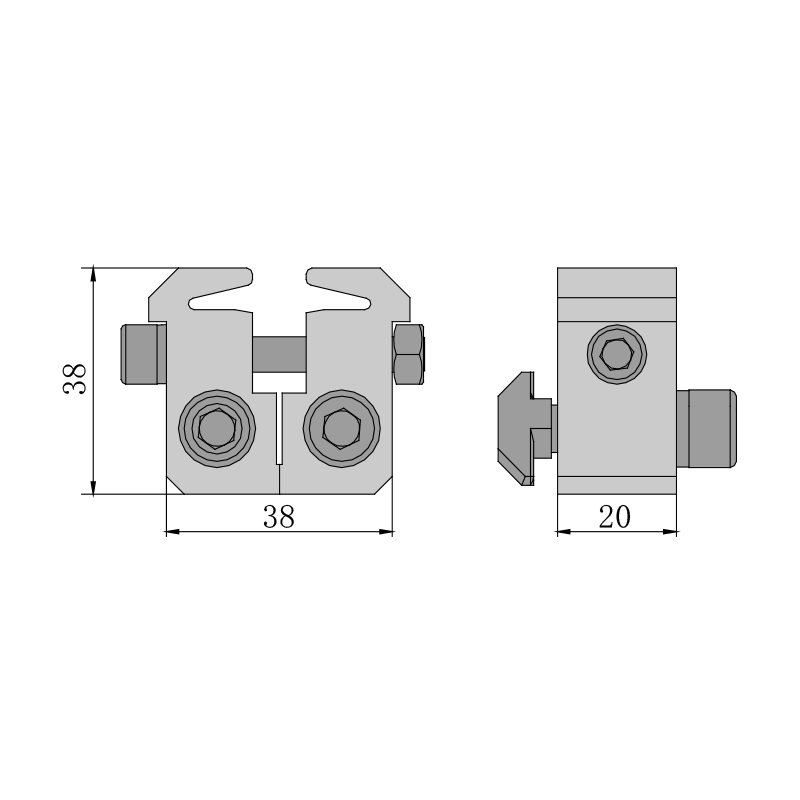

  • Dimension Drawing

The clamp block is a component specifically designed for stairway platform system, it's used for connecting and fastening two side-by-side profiles to form a tread.
The tightness can be adjusted by lighting or loosing the nut.

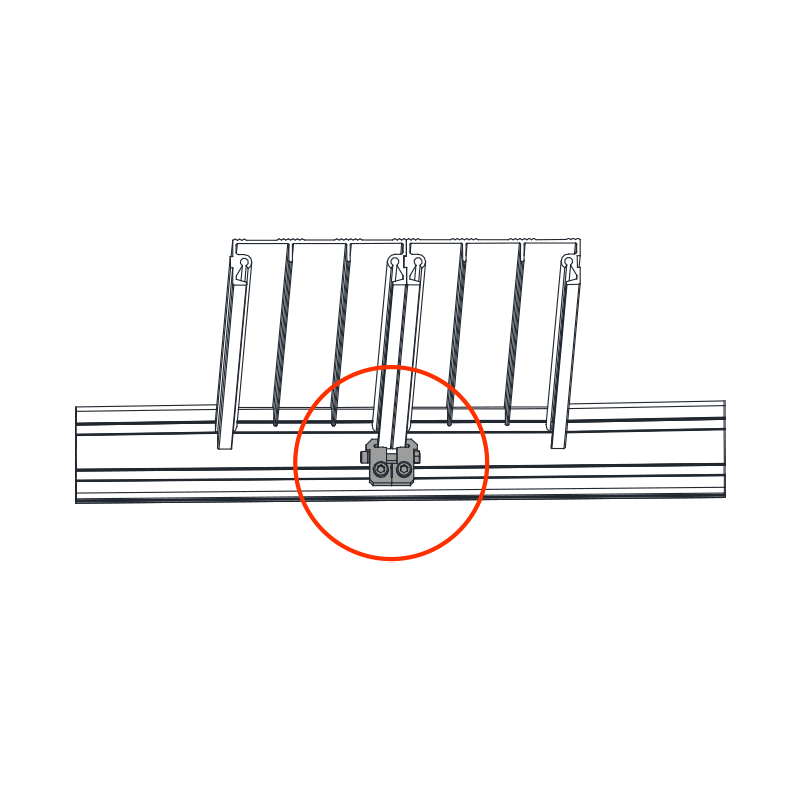

This diagram illustrates the connection between 2 step profiles by clamp block.
