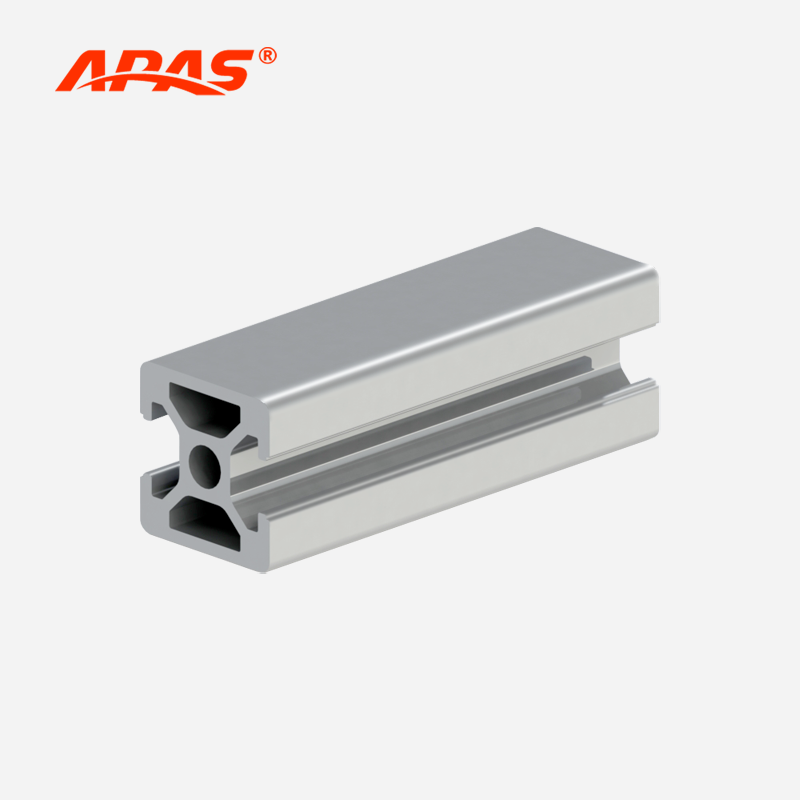

  • P6-2020-2N180 20x20 T-slot aluminum extrusion profile with two opposite 6.2mm slots and two smooth flat sides
  • P6-2020-2N180 20x20 T-slot aluminum extrusion profile with two opposite 6.2mm slots and two smooth flat sides

P6-2020-2N180 Aluminum Profile

No.P6-2020-2N180
The P6-2020-2N180 profile measures 20mm x 20mm and has a M6 mounting hole internally. This profile has slots on two opposite sides, each with a 6.2mm T-slot, allowing it to connect with other profiles. The other two sides are smooth flat surfaces, offering aesthetically pleasing appearance and easy-to-clean finish.

P6-2020-2N180, 2N90, 1N and 3N profiles share similar strength and weight with standard 2020 profile, both are suitable for lightweight frames with lower load-bearing requirements. Furthermore, the P6-2020-2N180, with its slots design on opposite sides, is particularly suitable for using in the central structures of frames: the left and right sides connect to other profiles via T-slots, while the front and back sides keep smooth and flat, providing a clean and  aesthetical appeal.
Profile No.
P6-2020-2N180
Material
6063-T5 Aluminum Alloy
Dimensions
20mm*20mm
T-slot Size
6.2mm
Max Length
6 m per piece
Manufacturing Process
Extrusion
Surface Treatment Process
Sandblasting, Anodizing
GET A QUOTE

  • Description

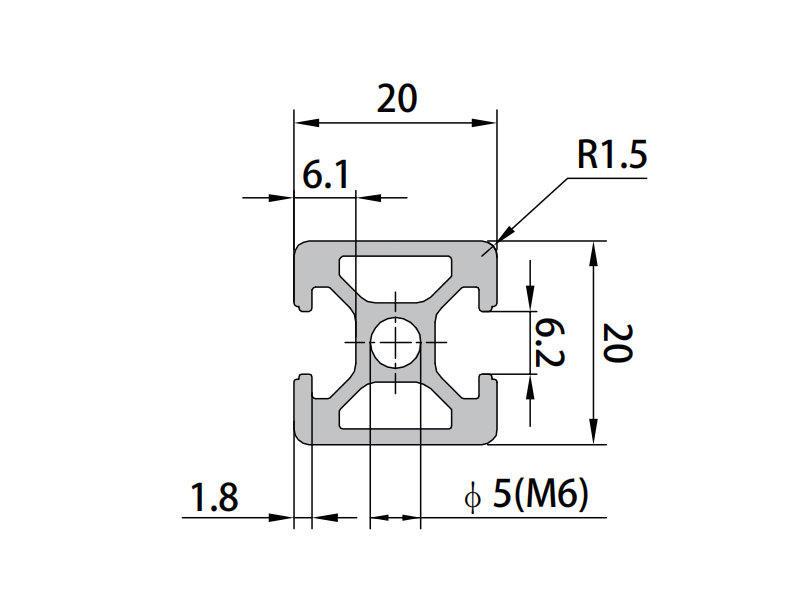

  • Section Diagram

Profile No. P6-2020-2N180
Material 6063-T5 Aluminum Alloy
Dimensions 20mm*20mm
T-slot Size 6.2mm
Color Plain
Weight per Meter 0.51 kg/m
Moment of Inertia Ix 0.867 cm⁴
Moment of Inertia Iy 0.718 cm⁴
Section Modulus Wx 0.867 cm³
Section Modulus Wy 0.718 cm³
Max Length 6 m per piece
Manufacturing Process Extrusion
Surface Treatment Process Sandblasting, Anodizing
  • P6-2020-2N180 20x20 T-slot aluminum extrusion profile with two opposite 6.2mm slots and two smooth flat sides
