  • P8-4080-1N 40x80 slot 8 aluminum profile with one smooth side for industrial frames
  • P8-4080-1N 40x80 slot 8 aluminum profile with one smooth side for industrial frames

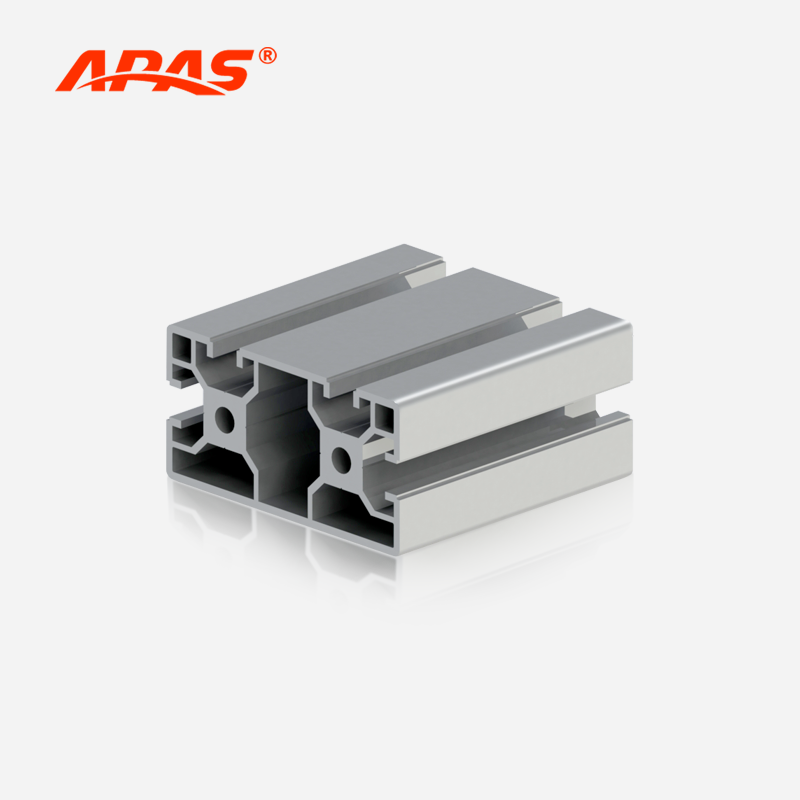

P8-4080-1N Aluminum Profile

No.P8-4080-1N
The P8-4080-1N aluminum proflie measures 40mm*80mm with 8.2mm T-slot and 2 mounting holes. This profile features slots on three sides for assembly with other profiles or necessaries (The 80mm surface has 2 slots and each 40mm surface has one), while one of 80 mm side is a smooth surface, offering aesthetically pleasing and easy-to-clean finish.

The P8-4080-1N profile shares similar appearance and weight to standard P8-4080 profile, suitable for aluminum frame requiring high strength. But compared to standard 4080 profile, 4080-1N features one side without T-slot, making it more suitable for structure on outer side of frame.
Profile No.
P8-4080-1N
Material
6063-T5 Aluminum
Dimensions
40mm*80mm
T-slot Size
8.2mm
Color
Plain
Max Length
6 m per piece
Manufacturing Process
Extrusion
GET A QUOTE

  • Description

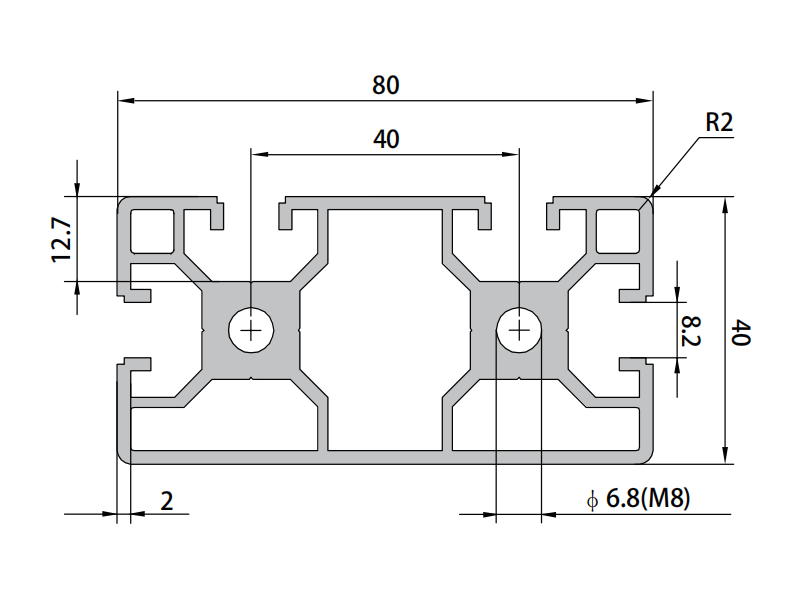

  • Section Diagram

Profile No. P8-4080-1N
Material 6063-T5 Aluminum Alloy
Dimensions 40mm*80mm
T-slot Size 8.2 mm
Color Plain
Weight per Meter 3.21 kg/m
Moment of Inertia Ix 15.63 cm⁴
Moment of Inertia Iy 61.98 cm⁴
Section Modulus Wx 7.8 cm³
Section Modulus Wy 15.5 cm³
Max Length 6 m per piece
Manufacturing Process Extrusion
Surface Treatment Process Sandblasting, Anodizing
  • P8-4080-1N 40x80 slot 8 aluminum profile with one smooth side for industrial frames
