  • P8-4080-2N90 40x80 slot 8 aluminum profile with two T-slot sides and two smooth sides for machine frames and enclosures
  • P8-4080-2N90 40x80 slot 8 aluminum profile with two T-slot sides and two smooth sides for machine frames and enclosures

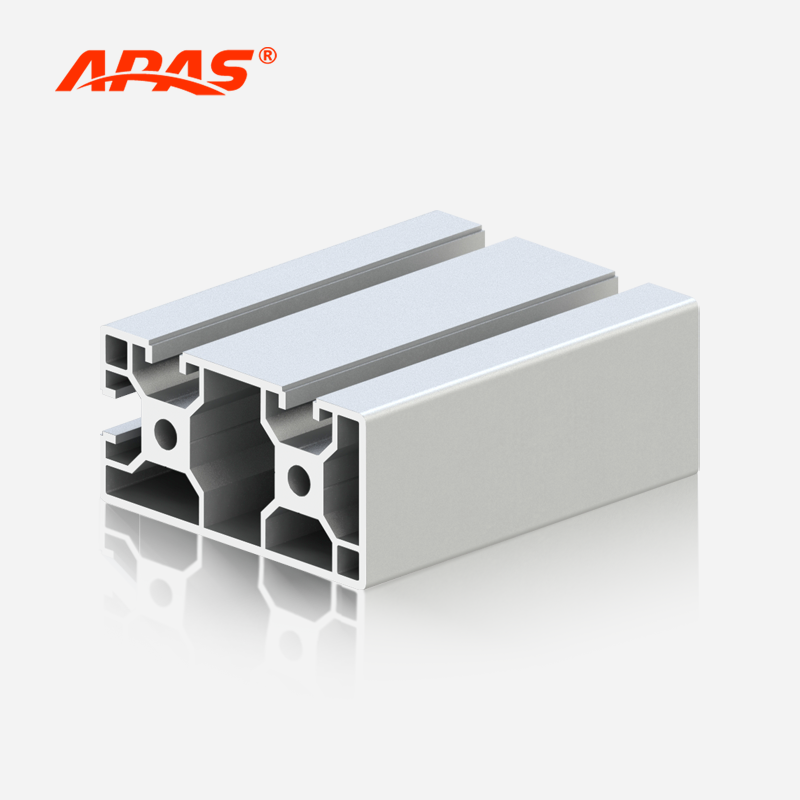

P8-4080-2N90 Aluminum Profile

No.P8-4080-2N90
The P8-4080-2N90 aluminum profile measures 40mm×80mm with T-slots of 8.2mm and 2 mounting holes. This profile features slots on 2 sides (a 80mm surface and a 40mm surface) for assembly with other profiles or necessaries, while other 2 sides are smooth surface, offering aesthetically pleasing and easy-to-clean finish.

The P8-4080-2N90 is similar to the standard 4080 and 4080-1N profiles, suitable for aluminum frame requiring high strength. The P8-4080-2N90 has 2 sides without T-slots so it can be used alongside the 4080-1N in different sections of frames.
Profile No.
P8-4080-2N90
Material
6063-T5 Aluminum Alloy
Dimensions
40mm*80mm
T-slot Size
8.2mm
Color
Plain
Max Length
6 m per piece
Manufacturing Process
Extrusion
GET A QUOTE

  • Description

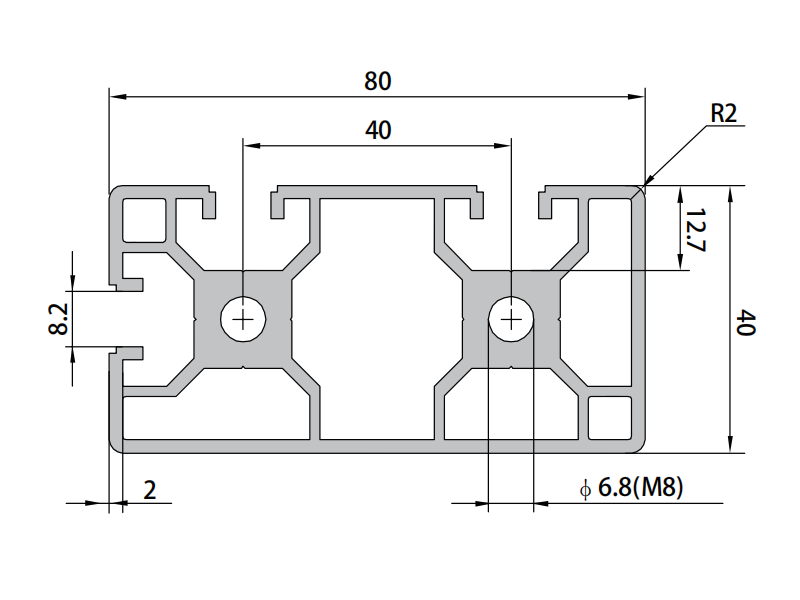

  • Section Diagram

Profile No. P8-4080-2N90
Material 6063-T5 Aluminum Alloy
Dimensions 40mm*80mm
T-slot Size 8.2mm
Color Plain
Weight per Meter 3.19 kg/m
Moment of Inertia Ix 15.69 cm⁴
Moment of Inertia Iy 62.94 cm⁴
Section Modulus Wx 7.75 cm³
Section Modulus Wy 15.63 cm³
Max Length 6 m per piece
Manufacturing Process Extrusion
Surface Treatment Process Sandblasting, Anodizing
  • P8-4080-2N90 40x80 slot 8 aluminum profile with two T-slot sides and two smooth sides for machine frames and enclosures
