  • P8-8080SW 80x80 super heavy duty T-slot aluminum profile with 8.2mm slots for industrial equipment frames and safety fence structures
  • P8-8080SW 80x80 super heavy duty T-slot aluminum profile with 8.2mm slots for industrial equipment frames and safety fence structures

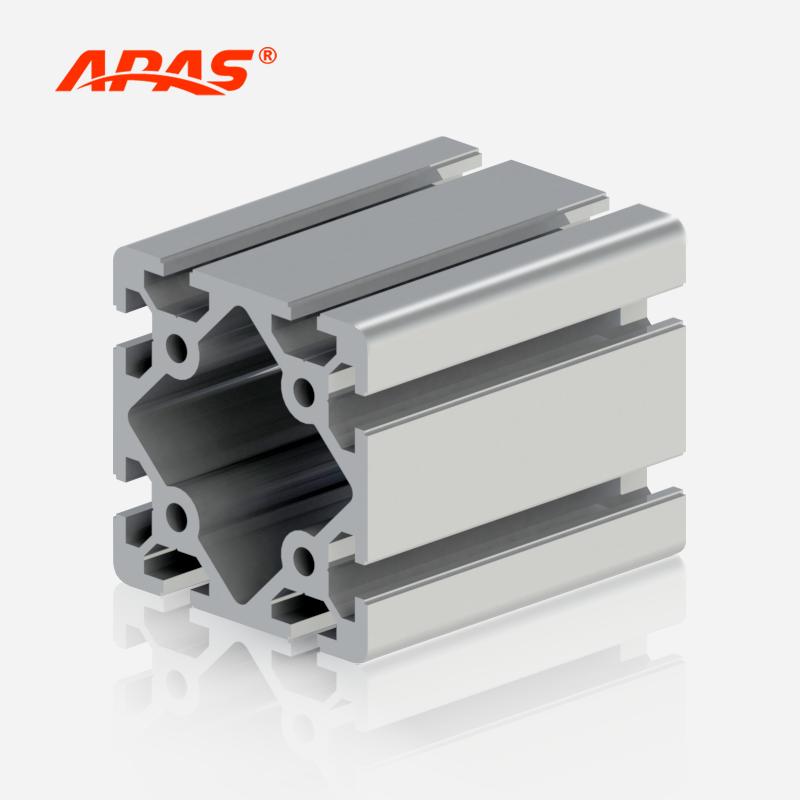

P8-8080SW Aluminum Profile

No.P8-8080SW
The P8-8080SW aluminum profile measures 80mm*80mm with T-slots of 8.2mm and 4 mounting holes, This profile has T-slots on all four sides, with two slots per sides, allowing it to be assembled with other profiles and accessaries.

Compares to standard P8-8080 and 8080W profiles, the P8-8080SW possesses the highest physical strength, making it ideal for frame structures requiring high load-bearing capacity like large-scale machinery safety fences, industrial equipment frames, and industrial stair platform systems.
Profile No.
P8-8080SW
Material
6063-T5 Aluminum Alloy
Dimensions
80mm*80mm
T-slot Size
8.2mm
Max Length
6 m per piece
Manufacturing Process
Extrusion
Surface Treatment Process
Sandblasting, Anodizing
GET A QUOTE

  • Description

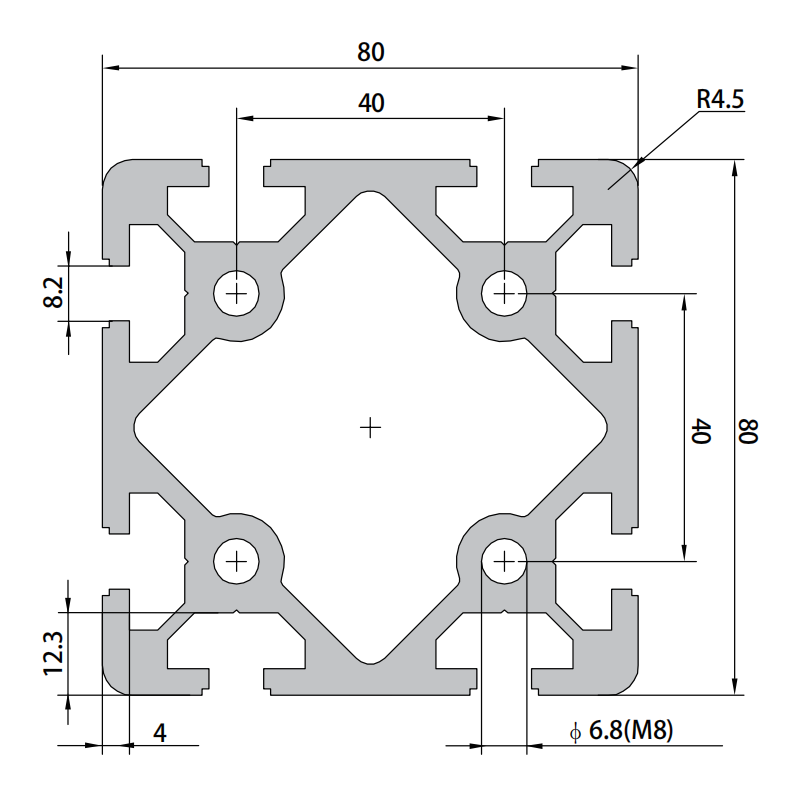

  • Section Diagram

Profile No. P8-8080SW
Material 6063-T5 Aluminum Alloy
Dimensions 80mm*80mm
T-slot Size 8.2mm
Color Plain
Weight per Meter 7.30 kg/m
Moment of Inertia Ix 162.76 cm⁴
Moment of Inertia Iy 162.76 cm⁴
Section Modulus Wx 40.69 cm³
Section Modulus Wy 40.69 cm³
Max Length 6 m per piece
Manufacturing Process Extrusion
Surface Treatment Process Sandblasting, Anodizing
  • P8-8080SW 80x80 super heavy duty T-slot aluminum profile with 8.2mm slots for industrial equipment frames and safety fence structures
